Quadrant chart

Best for a prioritisation grid — score items on two axes and let the four quadrants tell the story (impact vs effort, reach vs cost, and so on).

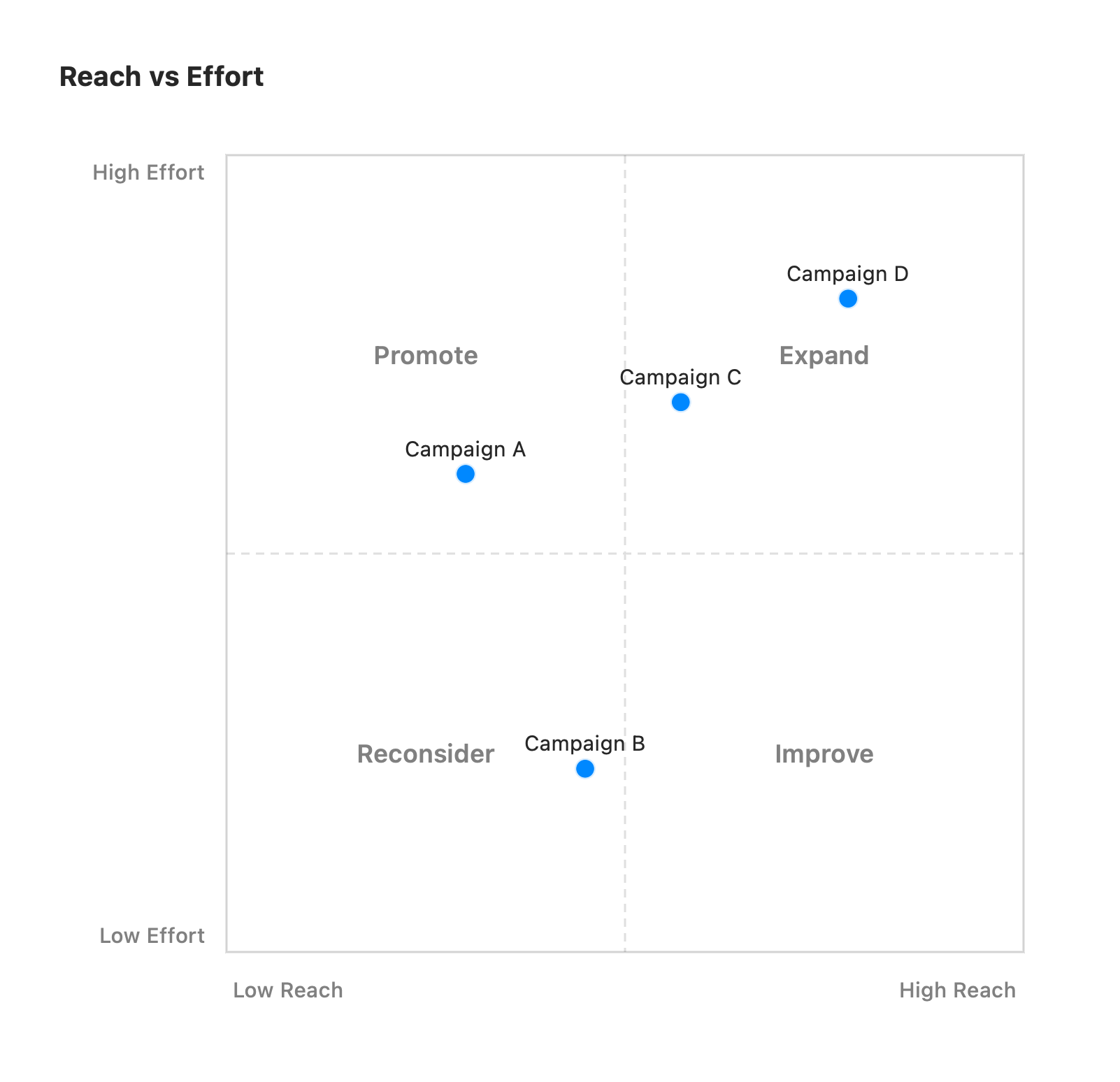

quadrantChart
  title Reach vs Effort
  x-axis Low Reach --> High Reach
  y-axis Low Effort --> High Effort
  quadrant-1 Expand
  quadrant-2 Promote
  quadrant-3 Reconsider
  quadrant-4 Improve
  Campaign A: [0.3, 0.6]
  Campaign B: [0.45, 0.23]
  Campaign C: [0.57, 0.69]
  Campaign D: [0.78, 0.82]

The first keyword is quadrantChart. An optional title sits on its own line.

• x-axis <left> --> <right> — labels the horizontal axis ends. The --> <right> half is optional.
• y-axis <bottom> --> <top> — labels the vertical axis ends.
• quadrant-1 … quadrant-4 — title each quadrant. Mermaid numbers them anticlockwise from the top-right: 1 top-right, 2 top-left, 3 bottom-left, 4 bottom-right.
• Label: [x, y] — plots a point. Both coordinates run 0–1 from the bottom-left corner (so [1, 1] is top-right); values outside that range are clamped.

The plot is a fixed square split into four tinted quadrants. Unrecognized lines are ignored, so a partial chart still renders.

Hover hints on points

Attach a hint to any point by its label, in a vizzy fence below the chart. The plotted marker is the target — hover it for the note (or click to open a link), with no extra (i) badge cluttering the chart:

quadrantChart
  title Reach vs Effort
  x-axis Low Reach --> High Reach
  y-axis Low Effort --> High Effort
  Campaign A: [0.3, 0.6]
  Campaign C: [0.57, 0.69]

hint Campaign A: [Details]("**Campaign A** — 2.3M reached, 18% conversion.")
hint Campaign C: [Brief](campaigns/c.md)

A quoted destination is inline markdown shown in a hover card; an unquoted one is a relative path to a file that opens on click (a .md / .vizzy.md opens inside vizzy, anything else in its default app) — exactly like hints on nodes and edges.

Per-point colours

Tint an individual marker with a style <label> fill:… directive in the same vizzy fence. The value is a palette token or a #hex:

quadrantChart
  x-axis Low Reach --> High Reach
  y-axis Low Effort --> High Effort
  Campaign A: [0.3, 0.6]
  Campaign B: [0.45, 0.23]
  Campaign C: [0.57, 0.69]

style Campaign A fill:green
style Campaign B fill:red
style Campaign C fill:#a855f7

Points without a style keep the default accent colour. (Labels with spaces are matched longest-first, so style Campaign A fill:green works as written.)
