Git graph

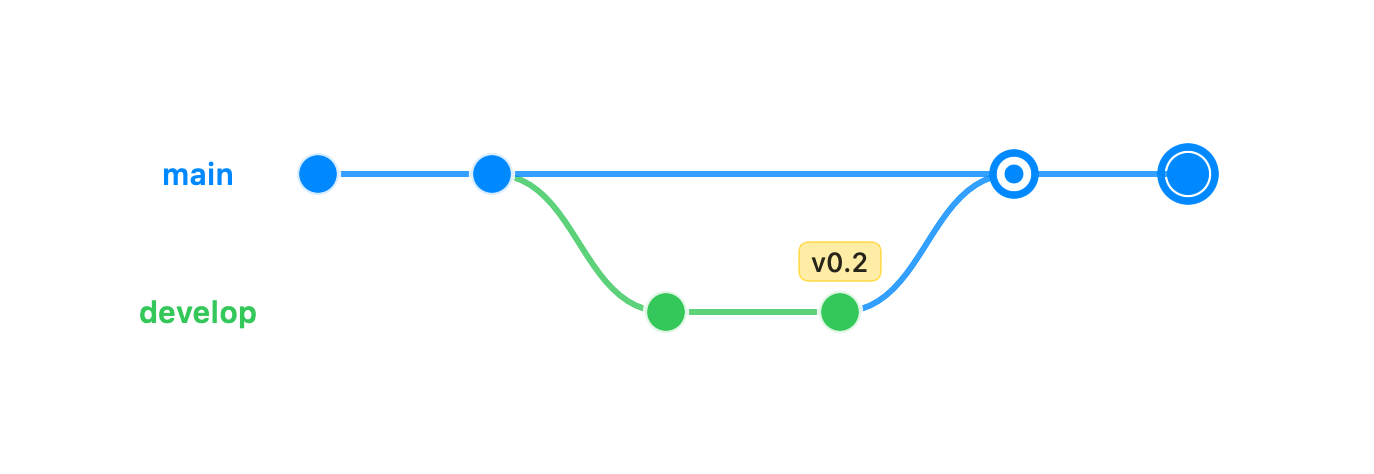

Best for explaining a branching workflow — commits run along a time axis, each branch gets its own coloured lane, and merges curve back in.

gitGraph
  commit id: "init"
  commit
  branch develop
  checkout develop
  commit
  commit tag: "v0.2"
  checkout main
  merge develop
  commit type: HIGHLIGHT

The first keyword is gitGraph. Each command on its own line builds the history in order:

• commit — adds a commit to the current branch. Options: id: "name" (otherwise one is generated), tag: "v1.0" (drawn as a small flag above the dot), and type: NORMAL | HIGHLIGHT | REVERSE (a bold ring, or an ✗ for a revert).
• branch <name> — forks a new lane from the current commit and switches to it.
• checkout <name> / switch <name> — makes <name> the current branch.
• merge <name> — merges <name> into the current branch as a two-parent commit, drawn with a connecting curve back to the merged lane. Accepts a tag: too.
• cherry-pick id: "…" — adds a commit on the current branch referencing another.

Every commit takes the next slot along the time axis (left to right by default); each branch takes the next lane down. Add gitGraph TB: on the first line to run time downward instead, with lanes side by side. Unrecognized fields are ignored, so a partial graph still renders.
